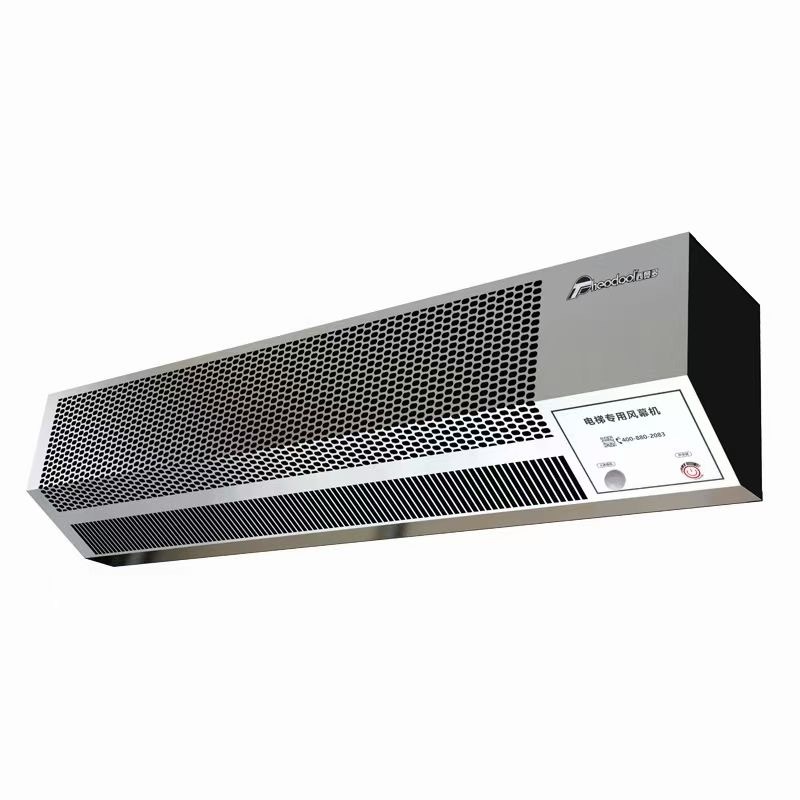

Stainless Steel Elevator Air Curtain 80W with Induction Sensor

1
MOQ
$89-99
Cena £
Stainless Steel Elevator Air Curtain 80W with Induction Sensor
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Blade material: Plastic
Mounting type: Wall Fan
Voltage: 230V
Fan type: Cross flow fan
Body material: Stainless steel or steel
Fan speed: 1-speed
Air velocity: 7.5m/s
Power: 80W
Dimension: 800x142x172mm
Input power: 80W
Air volume: 650m3/h
Noise level: 49db
Net weight: 5Kg
Color: White or Stainless steel
Motor type: Pure copper silicon steel sheet
Podkreślić:

stainless steel elevator air curtain

,

80W induction sensor air curtain

,

compact elevator air curtain
Podstawowe informacje
Place of Origin: Guangdong, China
Nazwa handlowa: Theodoor
Zapłata
opis produktu
Elevator Air Fan Ventilating Air Curtain in Stainless Steel With Body Induction
Product Description

Elevator ventilating air curtain fan for residential and commercial applications.

Key Features
  • Stainless steel body - Integrated with elevator environment, rust-resistant and durable
  • Double-sided air inlet - Can be installed at elevator's highest point without affecting luggage handling
  • Safety outlet design - Protective net prevents finger access
  • Induction sensor - Automatic operation with human detection and adjustable delay shutdown
  • High-performance motor - Pure copper silicon steel sheet motor tested for 8000+ hours
  • Ball bearing wind wheel - Stable, durable and energy efficient
  • Optimized airflow - Golden Angle air supply design for comfortable high-volume, low-noise operation
Technical Specifications
Model Dimension (mm) Voltage (V) Power (W) Air Volume (m³/h) Air Speed (m/s) Noise (db) Weight (Kg) Color
FM-1008DT (Manual) 800×142×172 220V 80 650 7.5 49 5 White
FM-1008DT (Sensor) 800×142×172 220V 80 650 - 49 5 White
FM-1008DT (Stainless) 800×142×172 220V 80 650 - 49 5 Stainless steel
Product Images

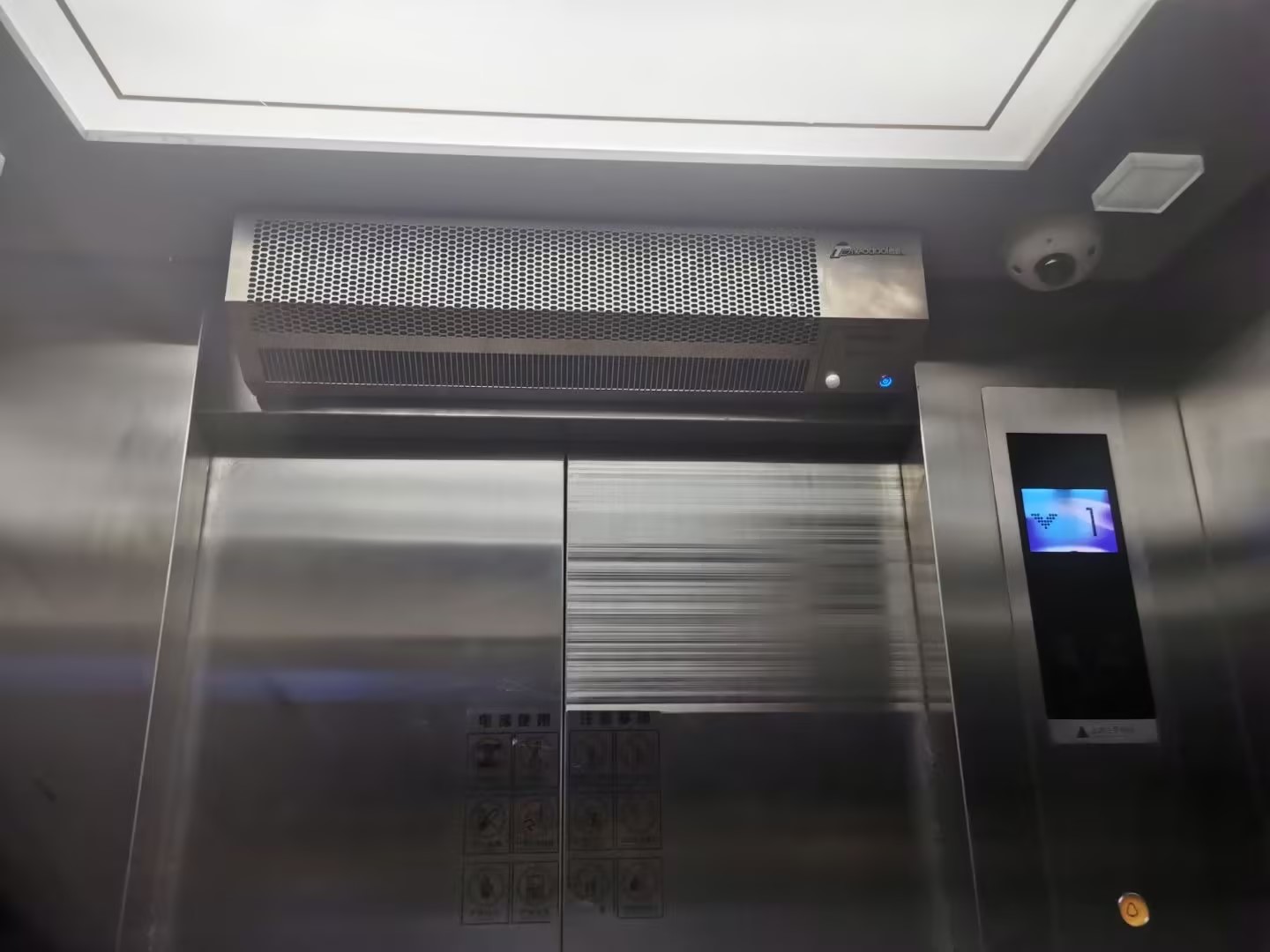

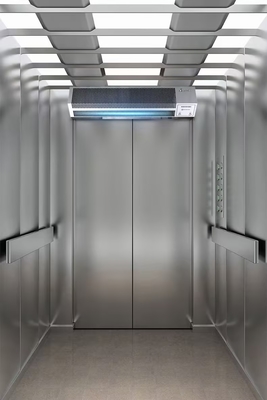

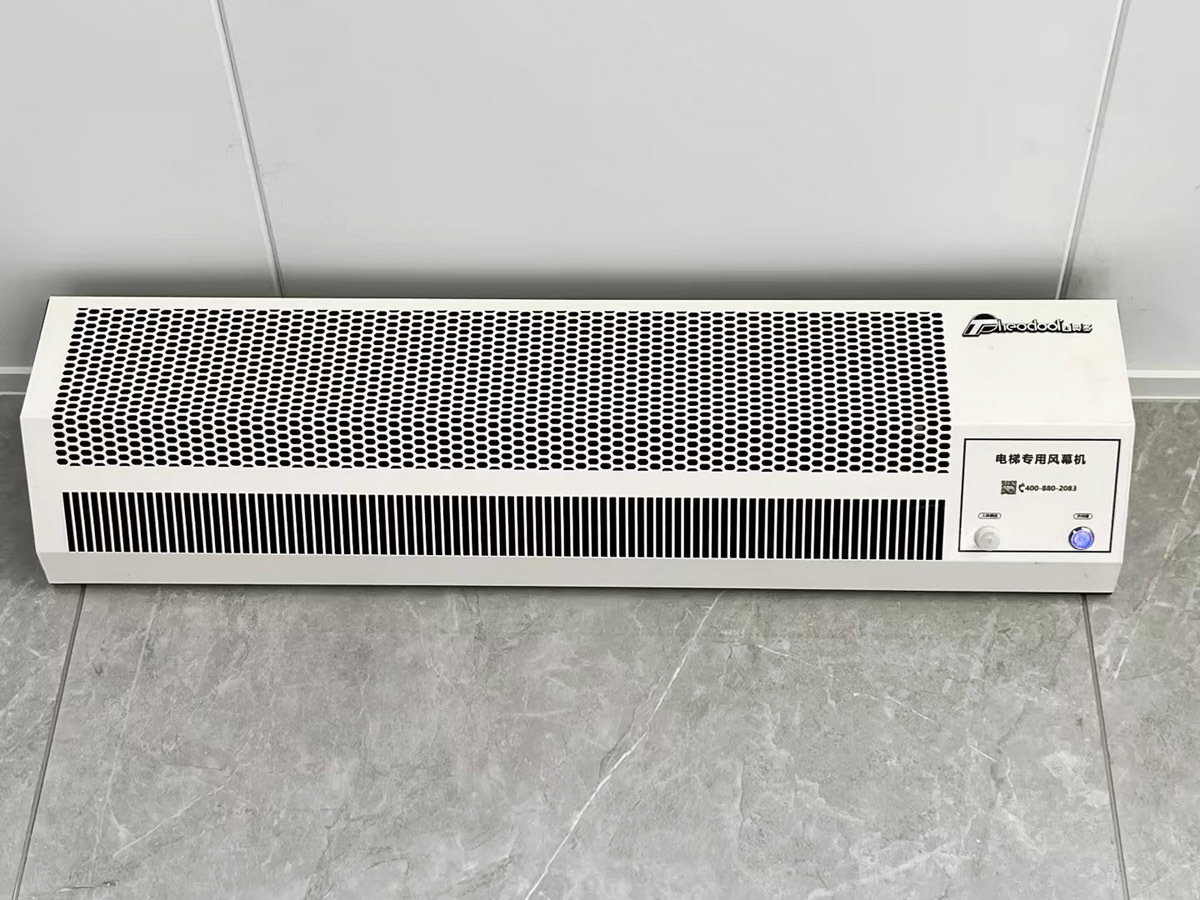

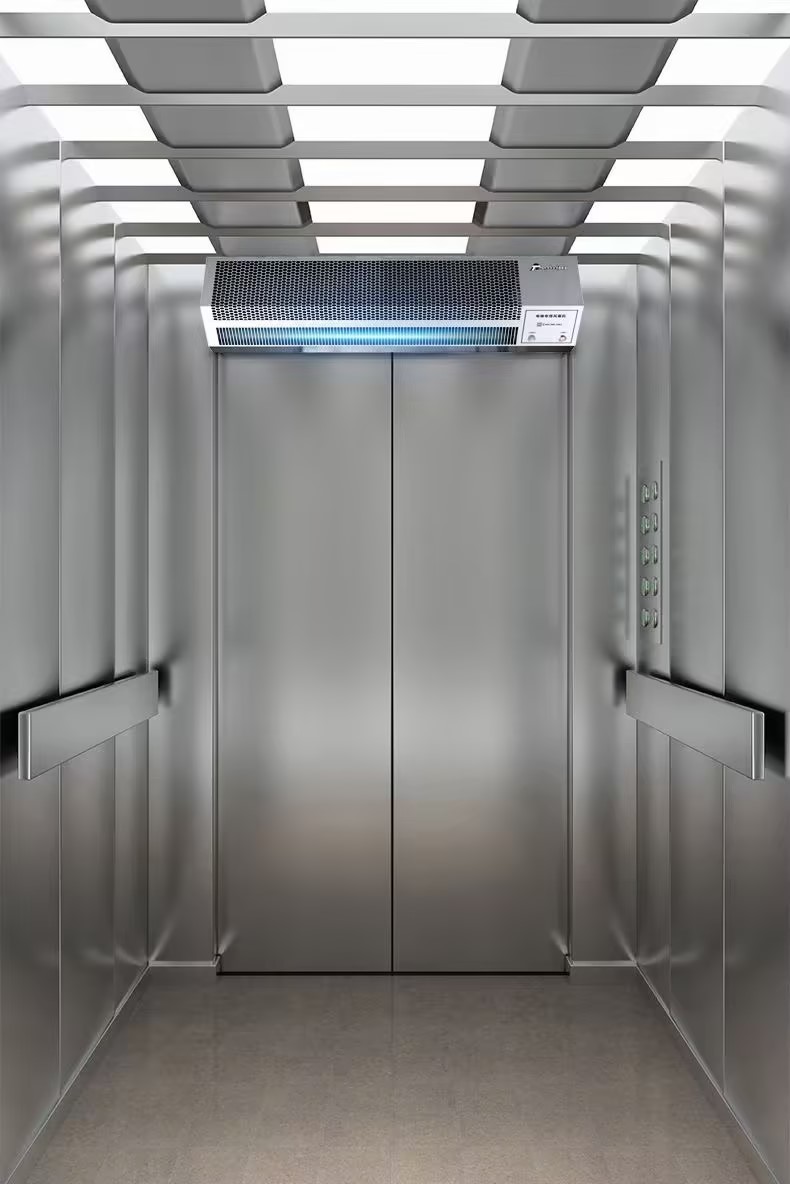

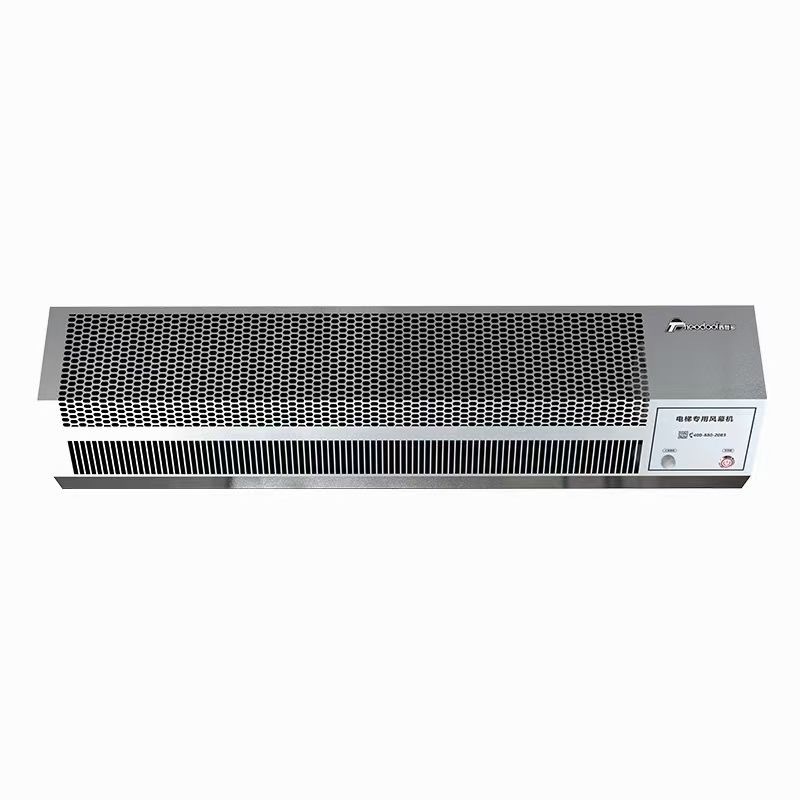

Stainless Steel Elevator Air Curtain 80W with Induction Sensor 0
Stainless Steel Elevator Air Curtain 80W with Induction Sensor 1
Stainless Steel Elevator Air Curtain 80W with Induction Sensor 2
Stainless Steel Elevator Air Curtain 80W with Induction Sensor 3
Packaging & Shipping
Stainless Steel Elevator Air Curtain 80W with Induction Sensor 4
Our Services
  • OEM/ODM solutions
  • Custom label and box design
  • Shipping arrangement
  • After-sales spare parts support
Company Information

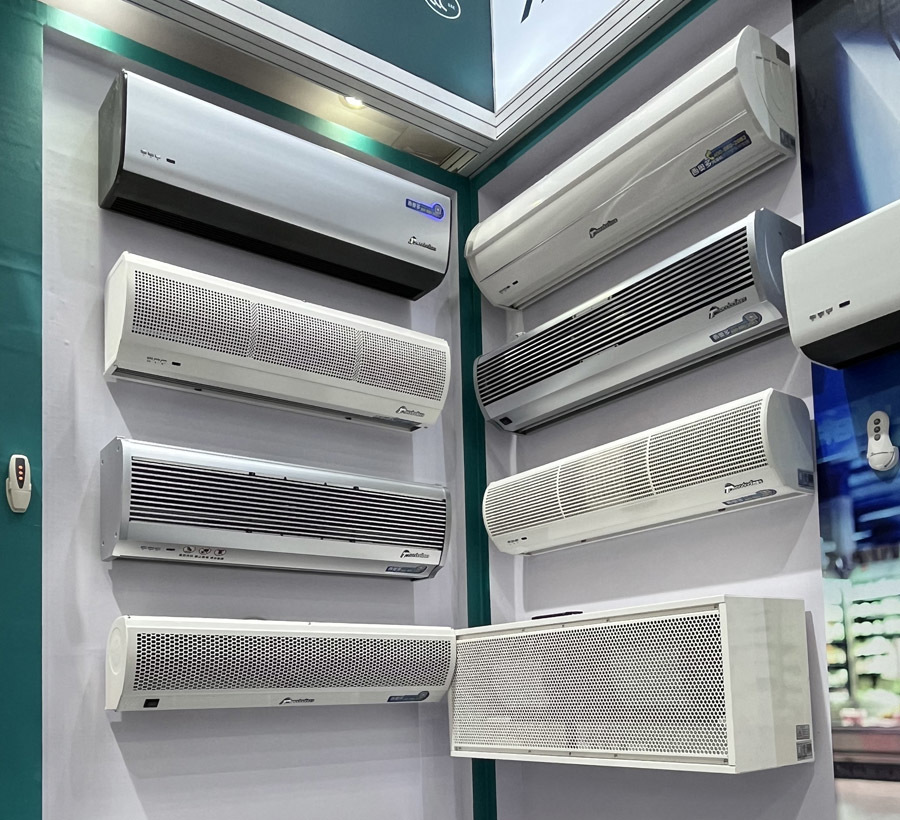

Stainless Steel Elevator Air Curtain 80W with Induction Sensor 5
Frequently Asked Questions
How to select suitable air curtain?

Consider these factors when selecting an air curtain:

  1. Application
  2. Door height
  3. Door width
  4. Outside wind conditions
  5. Building static pressure
  6. Door structure
  7. Ambient temperature
  8. Air curtain size
  9. Design and appearance
  10. Noise level
