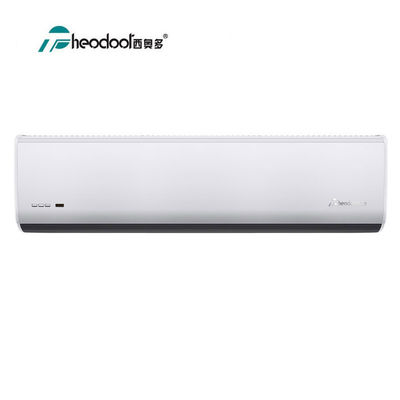

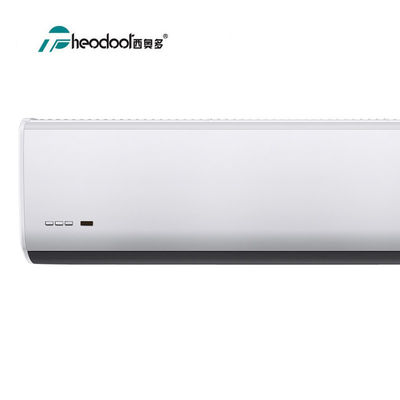

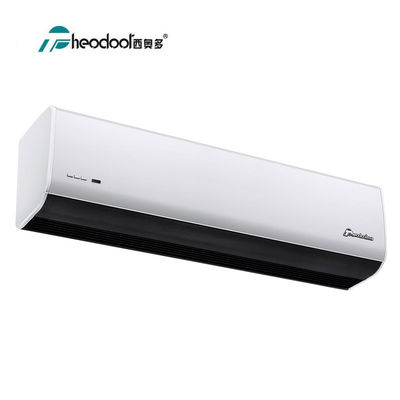

S7 Series Air Curtain 0.9m to 2m Door 220-240V AC Motor

50
MOQ
$89-100
Cena £
S7 Series Air Curtain 0.9m to 2m Door 220-240V AC Motor
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Mounting Type: Wall / Window Mount
Motor Type: AC Motor
Weight: 15 kg
Fan Type: Centrifugal type air curtain
Cover Material: Aluminum
Power Supply: 220-240/110V 50/60HZ
Fan Speed: 2 Speeds
Control Type: Button+Remote
Color: White
Input Power: 200-400W
Air Volume: 790-2360 m3/h
Air Speed: 11.5-14.5 m/s
Noise Level: <51-57 dB
Net Weight: 12-24 kg
Size: 900-2000x198x215 mm
Podkreślić:

compact air curtain 220-240V AC motor

,

S7 series air curtain 0.9m to 2m

,

door air curtain with AC motor
Podstawowe informacje
Place of Origin: Guangdong, China
Nazwa handlowa: Theodoor
Zapłata
opis produktu
New Air Curtain Product S7 Series From 0.9m to 2m Door Centrifugal Fan
Premium Aluminum Alloy Design
Features an aluminum cover combined with ABS material for a compact, elegant, lightweight, and durable construction that resists rust.
High Performance Air Delivery

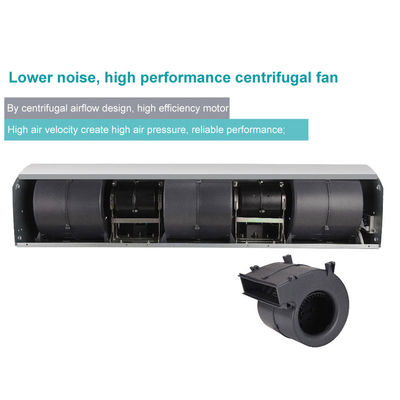

  • Compact size with powerful centrifugal turbine fans for high air velocity and low noise operation
  • Innovative turbine fan design increases air volume and pressure efficiency
  • Equipped with pure copper high-performance motor for continuous operation up to 8000 hours
Advanced Shock Resistance
3N design (new air duct, new turbine fan, and new motor connection process) ensures superior shock resistance for safe transportation and long-term reliability.
User-Friendly Controls
  • Special air guide plate design with adjustable air direction for thicker air barrier
  • Includes remote control and key switch options
  • Selectable high and low air velocity settings
Applications

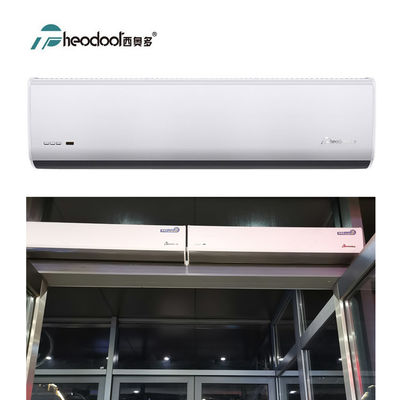

Ideal for high-end restaurants, hotels, clubs, shops, and commercial buildings. Covers door heights of 2.5-3.2m.
S7 Series Air Curtain 0.9m to 2m Door 220-240V AC Motor 0 S7 Series Air Curtain 0.9m to 2m Door 220-240V AC Motor 1 S7 Series Air Curtain 0.9m to 2m Door 220-240V AC Motor 2 S7 Series Air Curtain 0.9m to 2m Door 220-240V AC Motor 3 S7 Series Air Curtain 0.9m to 2m Door 220-240V AC Motor 4
Technical Specifications
Model Voltage (V/HZ) Input Power (W) Air Volume (m3/h) Air Speed (m/s) Noise (db) Net Weight (Kg) Size (mm)
FM-3209-L/Y 220~50 200/170 1030/790 14.5/11.5 <51/<48 12 900x198x215
FM-3210-L/Y 220~50 210/180 1130/870 - <51/<48 12.5 1000x198x215
FM-3212-L/Y 220~50 260/230 1400/1080 - <52/<49 14.5 1200x198x215
FM-3215-L/Y 220~50 330/300 1780/1370 - <54/<52 18 1500x198x215
FM-3218-L/Y 220~50 390/360 2140/1640 - <56/<53 21.5 1800x198x215
FM-3220-L/Y 220~50 400/370 2360/1820 - <57/<55 24 2000x198x215
Recommended Applications
Business Organizations Supermarkets, shopping malls, chain shops, department stores, hotels, restaurants
Public Places Subways, airports, stations, bookstores, exhibition halls, stadiums, museums, commercial buildings, hospitals
Entertainment Venues Movie theaters, clubs, bars, cafes, Internet bars, beauty shops
S7 Series Air Curtain 0.9m to 2m Door 220-240V AC Motor 5
Why Choose Our Air Curtains
  • 23+ Years Experience: Manufacturer with extensive export experience and over 100 air curtain models
  • Professional Engineering: Dedicated R&D team focused on air curtain technology
  • Advanced Technology: Modern machinery ensures superior product performance and reliability
  • Quality Materials: Rigorous selection process for safety, efficiency, and environmental protection
  • Stringent Testing: 100% product performance testing before shipment
  • Cost Effective: Long-life, high-reliability products with excellent performance
  • Responsive Support: Prompt customer service and technical assistance
S7 Series Air Curtain 0.9m to 2m Door 220-240V AC Motor 6 S7 Series Air Curtain 0.9m to 2m Door 220-240V AC Motor 7 S7 Series Air Curtain 0.9m to 2m Door 220-240V AC Motor 8
