Explosion-proof IP54 Theodoor Air Curtain with 380V/3PH/50Hz Power and Ex dbIIC T4Gb Certification for Door Ventilation

50
MOQ
$399
Cena £
Explosion-proof IP54 Theodoor Air Curtain with 380V/3PH/50Hz Power and Ex dbIIC T4Gb Certification for Door Ventilation
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Typ montażu: Mocowanie na ścianie drzwi
Typ silnika: Silnik AC
Waga: 25 kg
Zasilacz: 380 V/3 fazy/50 Hz
Eksplozja izolacyjna odporna na eksplozję: IP54, ex dbiic t4GB
Tworzywo: Ocynkowane stalowe ciało
Wysokość montażowa: 3-3,5m
Typ wentylatora: Przepływ krzyżowy
Materiał fanów: Fan metaliczny
Kontrola: Zasilanie włącz / wyłącz
Obudowa silnika: W załączeniu
Objętość powietrza: 2420-4280 m3/h
Prędkość powietrza: 16 m/s
Poziom hałasu: 68-72 dB

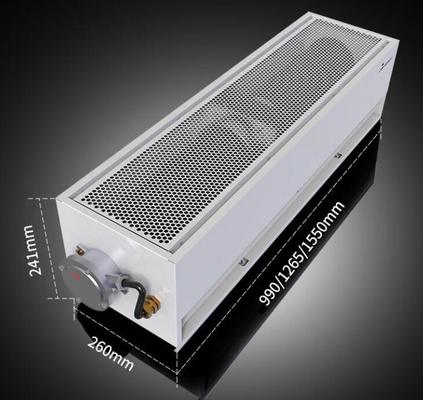

Wymiary modelu: 990x241x260 do 1550x241x260 mm
Podkreślić:

IP54 Air Curtain

,

380V/3PH/50Hz Door Ventilation

,

Ex dbIIC T4Gb Theodoor Air Curtain
Podstawowe informacje
Miejsce pochodzenia: Guangdong, Chiny
Nazwa handlowa: Theodoor
Numer modelu: FB-15
Zapłata
opis produktu
Commercial and Industrial Explosion-proof IP54 Air Curtain Door Ventilation

An efficient partner for air conditioning systems, maintaining indoor cool air while creating an invisible barrier that preserves clean, fresh air in indoor environments.

Key Features

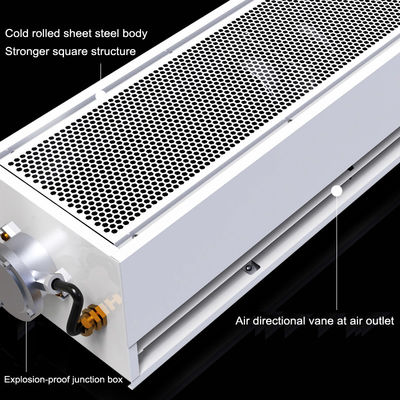

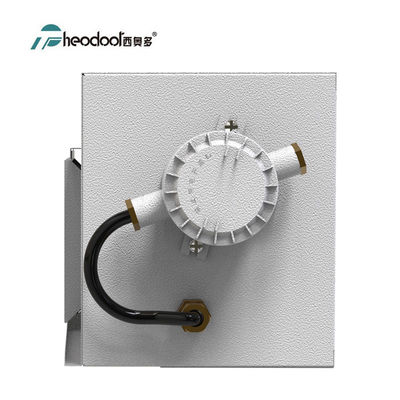

  • Explosion-proof construction: IP54 protection level with explosion-proof terminal box and certified pure copper motor (8000+ hours of lab testing without failure)
  • High safety rating: Explosion-proof mark Ex dbⅡC T4Gb - superior to standard Ex dbⅡB T4 rated machines
  • Wide application: Suitable for Zone 1 & 2 explosive gas environments including biopharmaceutical facilities, chemical plants, laboratories, gas stations, and warehouses
  • Durable construction: Galvanized steel with powder coating for long-lasting performance without deformation
  • Powerful airflow: Metal cross-flow fan wheel delivers high air volume, stable output, and superior isolation
Technical Specifications
Model Size (mm) Volt./Freq. Motor Power (W) Air Volume (m³/h) Air Speed (m/s) Noise (dB) N.W (kg)
FB-1509A 990x241x260 380v~ 50Hz 320 2420 16 68 20
FB-1512A 1260x241x260 450 3350 70 25
FB-1515A 1550x241x260 590 4280 72 31

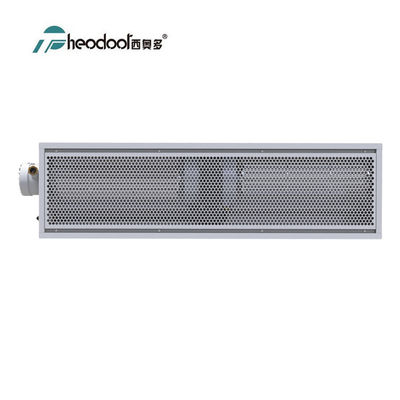

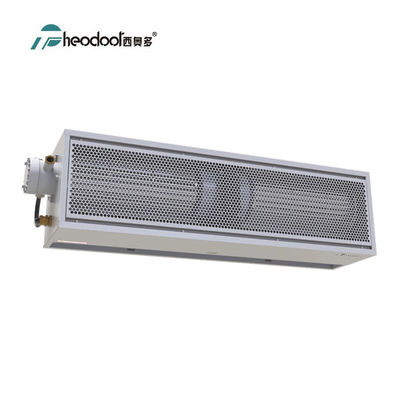

Product Images
Explosion-proof IP54 Theodoor Air Curtain with 380V/3PH/50Hz Power and Ex dbIIC T4Gb Certification for Door Ventilation 0
Explosion-proof IP54 Theodoor Air Curtain with 380V/3PH/50Hz Power and Ex dbIIC T4Gb Certification for Door Ventilation 1
Explosion-proof IP54 Theodoor Air Curtain with 380V/3PH/50Hz Power and Ex dbIIC T4Gb Certification for Door Ventilation 2
Explosion-proof IP54 Theodoor Air Curtain with 380V/3PH/50Hz Power and Ex dbIIC T4Gb Certification for Door Ventilation 3
Explosion-proof IP54 Theodoor Air Curtain with 380V/3PH/50Hz Power and Ex dbIIC T4Gb Certification for Door Ventilation 4
Packaging & Shipping
Explosion-proof IP54 Theodoor Air Curtain with 380V/3PH/50Hz Power and Ex dbIIC T4Gb Certification for Door Ventilation 5
Manufacturer Information
Explosion-proof IP54 Theodoor Air Curtain with 380V/3PH/50Hz Power and Ex dbIIC T4Gb Certification for Door Ventilation 6
Explosion-proof IP54 Theodoor Air Curtain with 380V/3PH/50Hz Power and Ex dbIIC T4Gb Certification for Door Ventilation 7
Explosion-proof IP54 Theodoor Air Curtain with 380V/3PH/50Hz Power and Ex dbIIC T4Gb Certification for Door Ventilation 8
Theodoor Industrial - National Craftsman, Originality Manufacturing

Theodoor Industrial Park spans 30,000 square meters with advanced equipment and detection instruments. Our facility features automated assembly lines, CNC production, and implements ERP management, 6S management, and strict quality control systems.

We focus on design aesthetics, performance, material testing, R&D, and technology. Using new security and environmentally friendly materials with advanced manufacturing techniques, we ensure durable, safe products that perform in various conditions.

With over 80 national invention, utility model, and design patents, Theodoor leads industry quality and performance upgrades. Our certifications include ISO9001, ISO14001, CCC, CE, CB, ROHS, ERP, UL, SASO, INMETRO and SAA. For 18+ years, we've created quality products worldwide, evolving from "MADE IN CHINA" to "CREATED IN CHINA".
